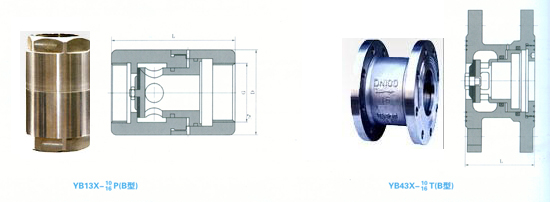

型號(hào) | 公稱壓力PN(MPa) | 公稱通徑 DN(mm) | L |
YB43X-10T (B型) | 1.0 1.6 | 50 | 85 |
65 | 102 | ||
80 | 122 | ||
100 | 140 | ||
125 | 160 | ||
150 | 178 | ||
200 | 230 |
公稱通徑 DN(mm) | 尺寸 (mm) | ||
C | L | D | |
15 | 1/2″ | 80 | 50 |
20 | 3/4″ | 80 | 50 |
25 | 1″ | 90 | 54 |
32 | 11/4″ | 100 | 60 |
40 | 11/2/″ | 110 | 68 |
50 | 2″ | 120 | 80 |
